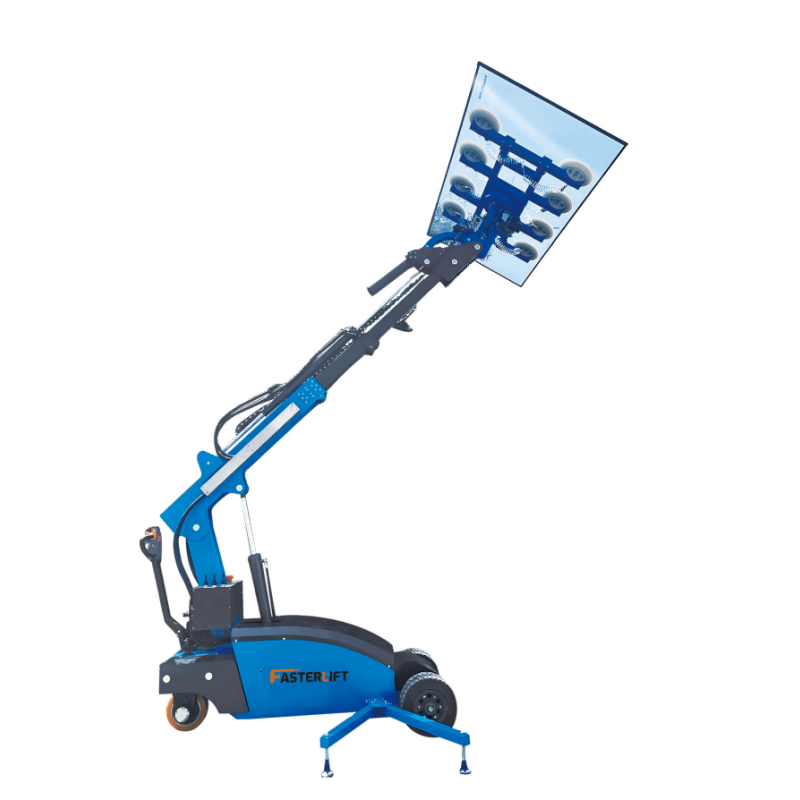

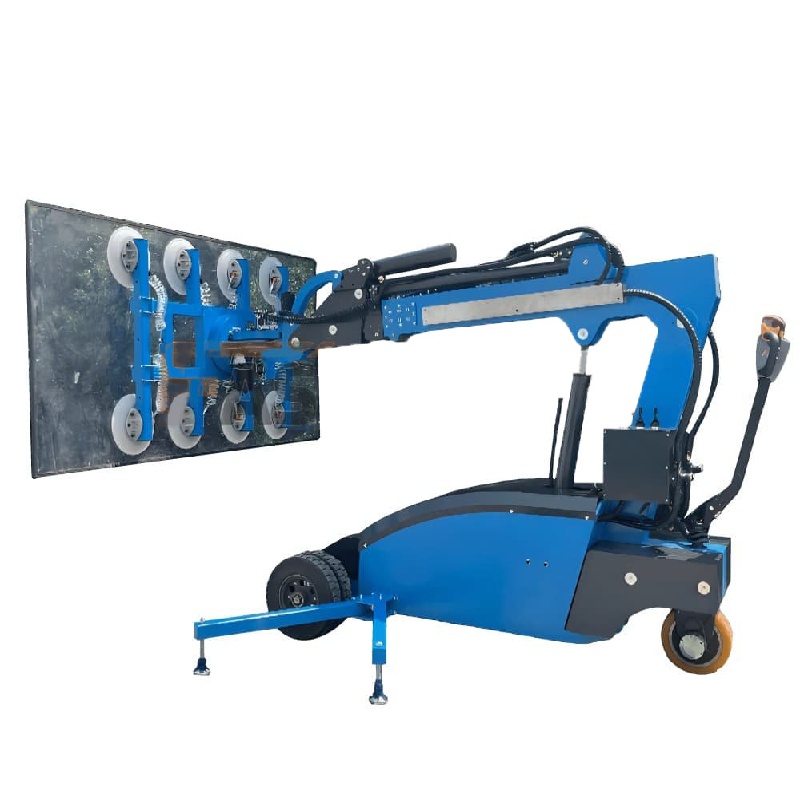

Rear driving Full Electric Vacuum Lifter Robot

  • The Rear-Drive Full Electric Vacuum Lifter Robot is an intelligent material handling solution engineered for safe, efficient, and precise lifting of glass, panels, and other smooth, non-porous materials. Featuring a rear-wheel drive system and a fully electric powertrain, this robot delivers excellent maneuverability, smooth operation, and zero-emission performance.

    Equipped with a high-performance vacuum system, the lifter provides strong and reliable suction to securely handle materials such as glass panels, metal sheets, stone slabs, and composite boards. The ergonomic control interface allows operators to easily maneuver, lift, tilt, and position loads with high accuracy, significantly reducing labor intensity and workplace injury risks.

    The compact chassis and rear-drive configuration ensure stable movement and tight turning in narrow spaces, making the robot ideal for indoor environments such as factories, warehouses, workshops, and construction sites. With battery-powered operation, the vacuum lifter robot offers low noise, low maintenance, and environmentally friendly performance.
  • EMAIL   INQUIRY

Model Type

LD200

LD300

LD400

LD500

LD600

LD800

LD1000

Capacity

200kg (retract)100kg (extend)

300kg(retract)

150kg(extend)

400kg(retract)

200kg(extend)

500kg(retract)

250kg(extend)

600kg(retract)

300kg(extend)

800kg(retract)

400kg(extend)

1000kg(retract)

500kg(extend)

Lifting Height

2700mm

3700mm

3700m m

3700mm

3700mm

5000mm

5000mm

QTY of Sucker

4pcs

4pcs

4pcs

6pcs

6pcs

8pcs

10pcs

Rubber Sucker

Ø300mm

Ø300mm

Ø300mm

Ø300mm

Ø300mm

Ø300mm

Ø300mm

Gel Battery

2x12V/50AH

2x12V/100AH

2x12V/100AH

2x12V/100AH

2x12V/100AH

2x12V/120AH

2x12V/120AH

Smart Charger

24V15A

24V15A

24V15A

24V15A

24V15A

24V 18A

24V 18A

Drive Motor

24V/1500W

24V/1200W

24V/1200W

24V/1200W

24V/1200W

24V/1500W

24V/1600W

Lifting Motor

2350*620mm

24V/2000W

24V/2000W

24V/2000W

24V/2000W

24V/2200W

24V/2500W

Driving Wheel

Ø250x80mm

Ø250x80mm

Ø250x80mm

Ø300x100mm

Ø300x100mm

Ø300x125mm

Ø300x125mm

Packing(m)

2.35*0.62*1.7

2.56*1.03*1.7

2.56*1.03*1.7

2.58*1.05*1.7

2.58*1.05*1.7

3*1.13*1.8

3*1.20*1.8

N.W/G.W

600/700kg

1100/1150kg

1280/1330kg

1300/1350kg

1400/1450kg

1600/1650kg

1850/1920KG

Movements

Pad frame vertical up/down 180°automatic, Boom in/out TELESCOPIC automatic, Powered arm up/down automatic , Lateral side shift 150mm automatic.Pad frame tilt 180°manual,Pad frame rotation 360°manual (optional automatic moving being showed on following page)

Usages

Mainly used for handling,moving and installing glass,marble,wooden panel etc.

Spare Parts

1set of seal rings,fuse, 1 air pipe, air pipe joint, sucker nozzle, bolt
