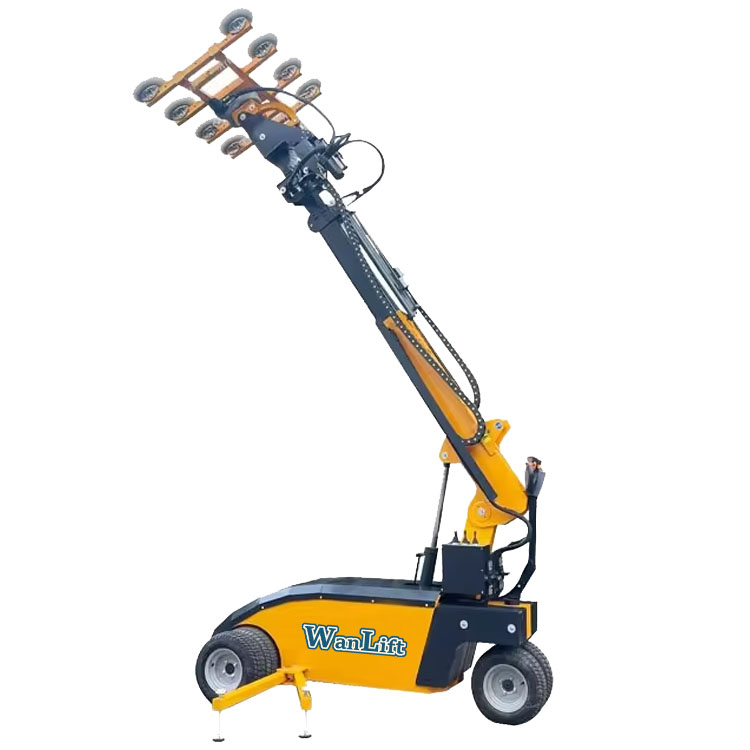

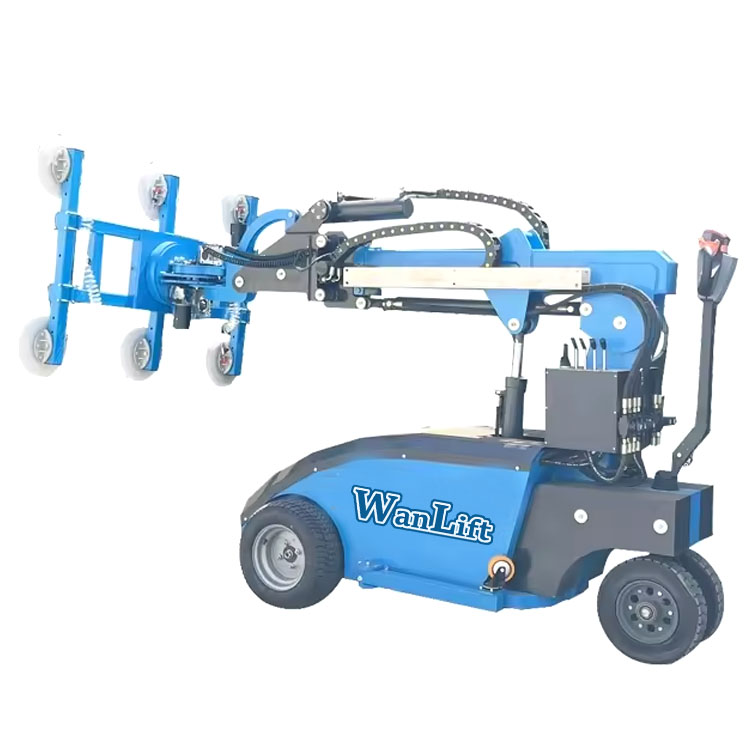

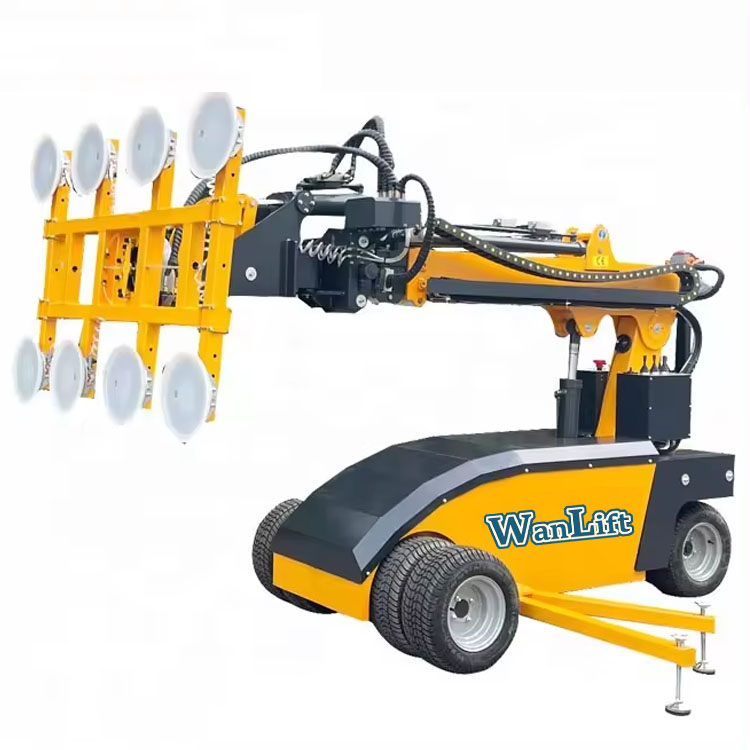

Full Electric Vacuum Lifter Robot

  • Capacity from 300kg to 800kg.There are both rear driving and frong driving type.Lifting height from 3.5m to 5m,mainly used to handle and installing glass,windows,marbles,metal sheet and so on.
  • EMAIL   INQUIRY

Model Type

LD300F

LD400F

LD500F

LD600F

LD800F

Load Capacity

300kg (retract),

150kg (extend)

400kg (retract),

200kg (extend)

500kg (retract),

250kg (extend)

600kg (retract),

300kg (extend)

800kg (retract),

400kg (extend)

Lifting Height

3600mm

3600mm

3700mm

3700mm

5000mm

QTY of Suction Cap

4pcs

4pcs

6pcs

6pcs

8pcs

Rubber Suction Cap

Ø300mm

Ø300mm

Ø300mm

Ø300mm

Ø300mm

Deep cycle Battery

2x12V/120AH

2x12V/120AH

2x12V/150AH

2x12V/150AH

2x12V/160AH

Battery Charger

110v~240v

110v~240v

110v~240v

110v~240v

110v~240v
