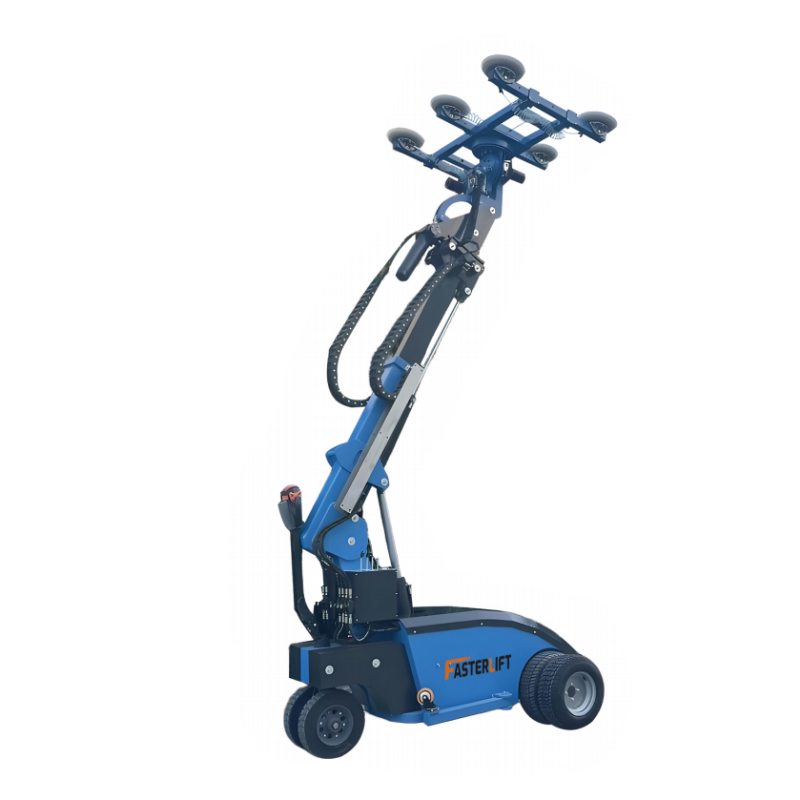

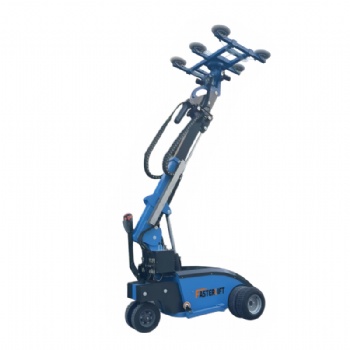

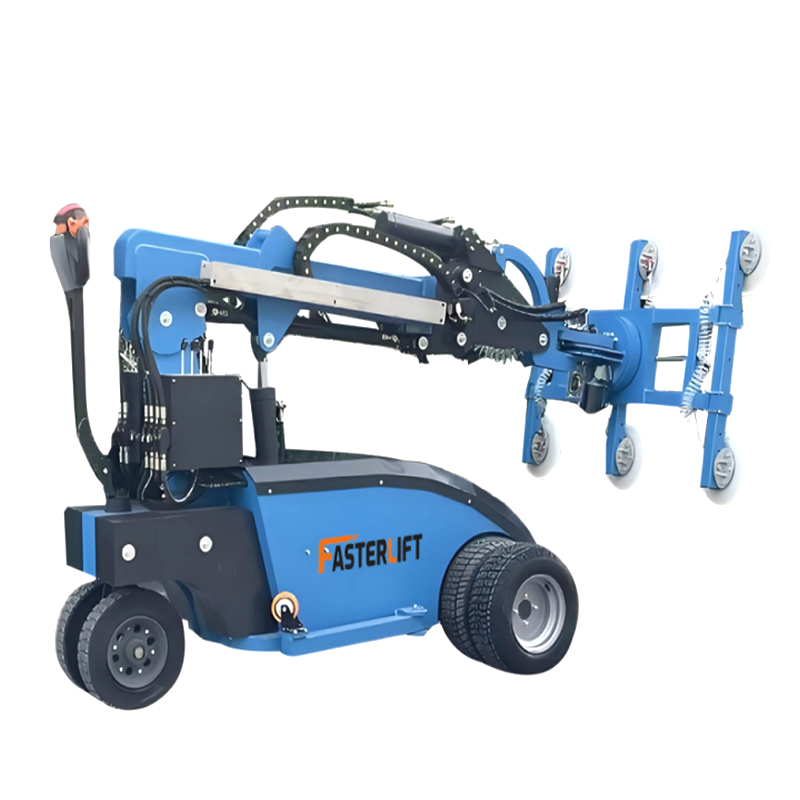

Rough Terrain Vacuum Lifter Robot

  • The Rough Terrain Vacuum Lifter Robot is a heavy-duty material handling machine engineered for safe and efficient lifting of glass, panels, and smooth-surface materials on uneven and challenging ground conditions. Designed with an all-terrain chassis and high-clearance structure, it delivers excellent stability and traction across construction sites, gravel, slopes, and outdoor work areas.

    Powered by a fully electric drive system, the robot offers smooth, low-noise, and zero-emission operation while maintaining strong performance in demanding environments. The integrated high-capacity vacuum system ensures secure suction and precise control when lifting, rotating, tilting, and positioning large and fragile materials.

    Its robust design, intuitive controls, and compact maneuverability make the rough terrain vacuum lifter robot an ideal solution for construction, façade installation, glass handling, and industrial applications where conventional lifting equipment cannot operate safely or efficiently.
  • EMAIL   INQUIRY

Model Type

LD300A

LD400A

LD500A

LD600A

LD800A

Load Capacity

300kg (retract),

150kg (extend)

400kg (retract),

200kg (extend)

500kg (retract),

250kg (extend)

600kg (retract),

300kg (extend)

800kg (retract),

400/220kg (extend)

Lifting Height

3600mm

3600mm

3700mm

3700mm

5000mm

QTY of Sucker

4pcs

4pcs

6pcs

6pcs

8pcs

Rubber Sucker

Ø300mm

Ø300mm

Ø300mm

Ø300mm

Ø300mm

Gel Battery

2x12V/120AH

2x12V/120AH

2x12V/150AH

2x12V/150AH

2x12V/160AH

Battery Charger

110v~240v

110v~240v

110v~240v

110v~240v

110v~240v

Drive motor

3KW

3KW

3KW

3KW

3KW

Lifting Motor

24V/1.5KW/12L

24V/1.5KW/12L

24V/2KW/12L

24V/2KW/12L

24V/2.2W/12L

Wheel Type

Pneumatic Tyre

Pneumatic Tyre

Pneumatic Tyre

Pneumatic Tyre

Pneumatic Tyre

Packing Size(mm)

2970*1080*1720

2970*1080*1720

2970*1080*1720

2970*1080*1720

3200*1280*2300

N.W/G.W

1450/1550kg

1550/1650kg

1650/1750kg

1750/1850kg

1850/1950kg

Movements

Pad frame vertical up/down 180°automatic,Boom in/out TELESCOPIC automatic,Powered arm up/down automatic,Lateral side shift 100mm automatic.Sucker frame rotating 360 degree.Sucker frame tilt left/right 90 degree.(Optional automatic)

Usages

Mainly used for handling,moving and installing glass,marble,wooden panel etc.

Spare Parts

1set of seal rings,fuse, 1 air pipe, air pipe joint, sucker nozzle, bolt
