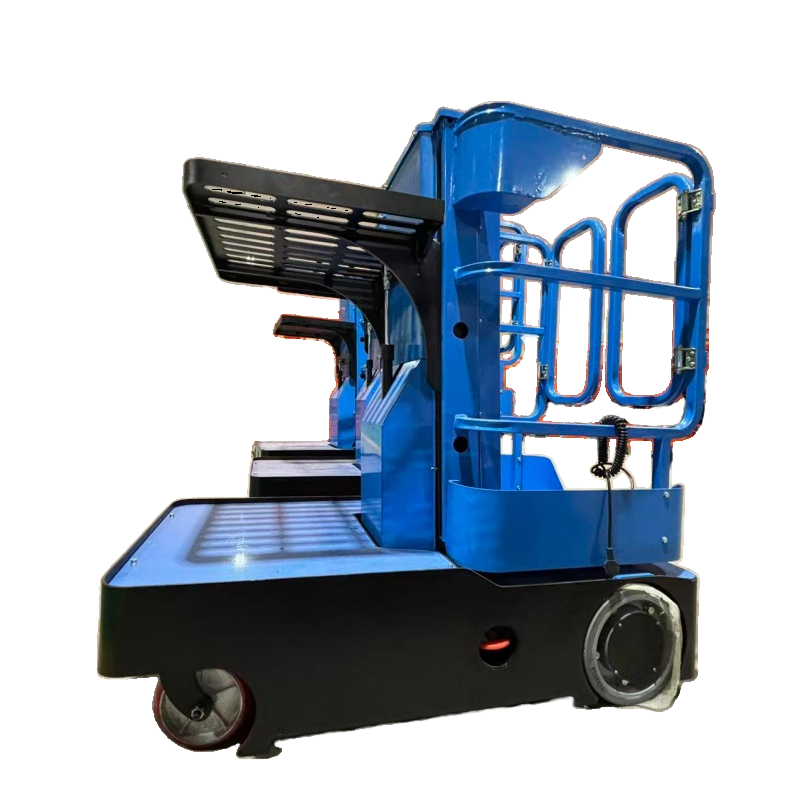

Vertical Telescopic Mast Order Picker Lift

The Vertical Telescopic Mast Order Picker Lift is a compact and efficient aerial work platform designed for indoor material picking, maintenance, and installation tasks at height. Featuring a vertical telescopic mast structure, the lift provides smooth and stable vertical movement while occupying minimal floor space.

Powered by a reliable electric drive system, the machine delivers quiet, zero-emission operation, making it ideal for warehouses, distribution centers, retail stores, factories, and other indoor environments. The extendable platform increases working reach, allowing operators to access shelving and work areas more efficiently.

With a tight turning radius, easy maneuverability, and simple controls, this vertical mast lift ensures safe, precise, and productive operation. Multiple models are available with working heights from 5.6 m to 8 m, meeting a wide range of light-duty aerial access requirements.
EMAIL INQUIRY

Item	TPL5.6	TPL6.8	TPL08
Working Height (m)	5.6	6.8	8
Max Platform Height (m)	3.6	4.8	6
Load Capacity (kg)	227
Platform Size (m)	1.3×0.7
Extendable Platform Capacity (kg)	114
Extendable Platform Length (m)	0.51
Wheel Base (m)	1.04
Inner Turning Radius (m)	0
Outer Turning Radius (m)	1.4
Travel Speed (Stowed)	4 km/h
Travel Speed (Raised)	1.1 km/h
Up/Down Speed	Empty load lifting up 9.5 sec/m, lifting down 12 sec/m
Grade Ability (%)	25
Drive Tires	305×100 mm
Drive Motors	2×24V DC / 0.5 kW
Lifting Motor	24V DC / 1.3 kW
Battery	2×12V / 100Ah
Charger	24V / 15A
Overall Size (mm)	1360×760×1700	1360×760×1980	1360×760×1990
Weight (kg)	810	980	1200
Loading Qty (20'/40')	12 sets / 25 sets
