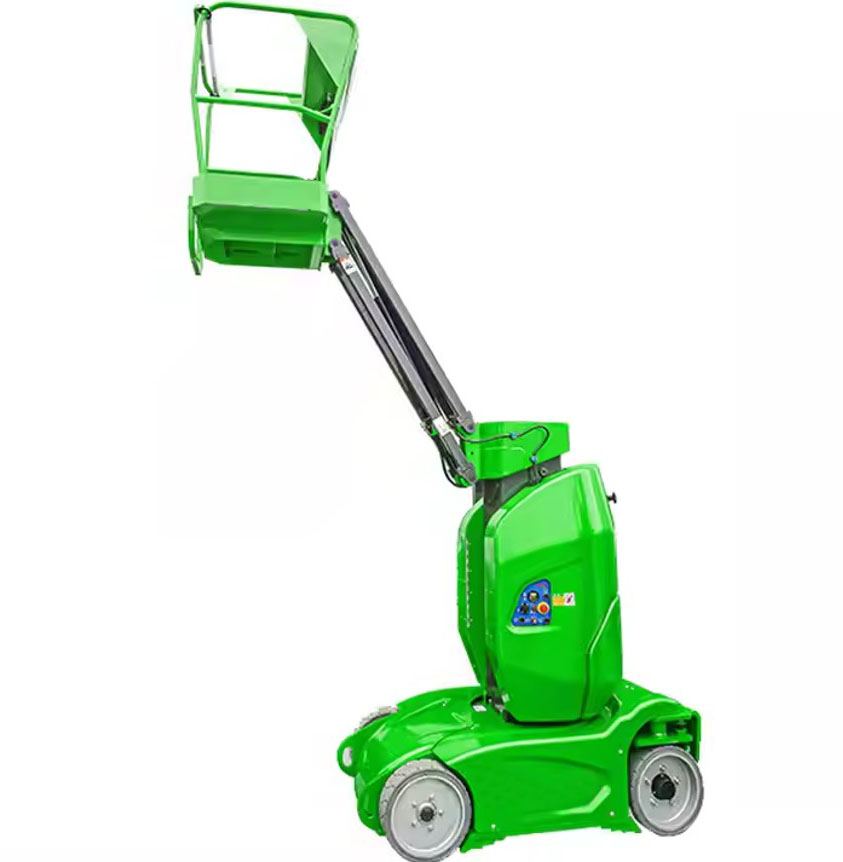

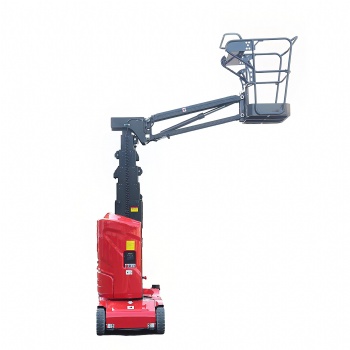

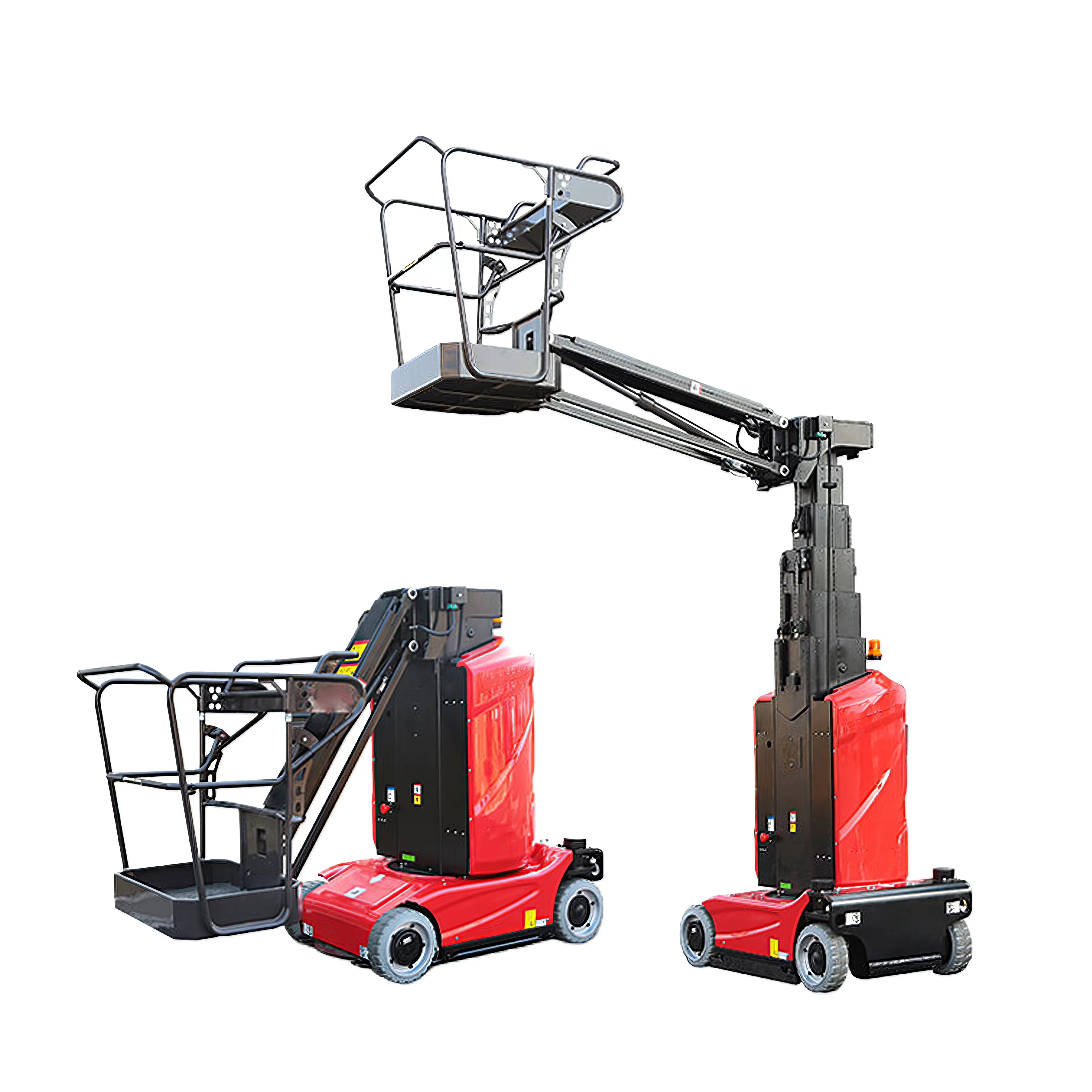

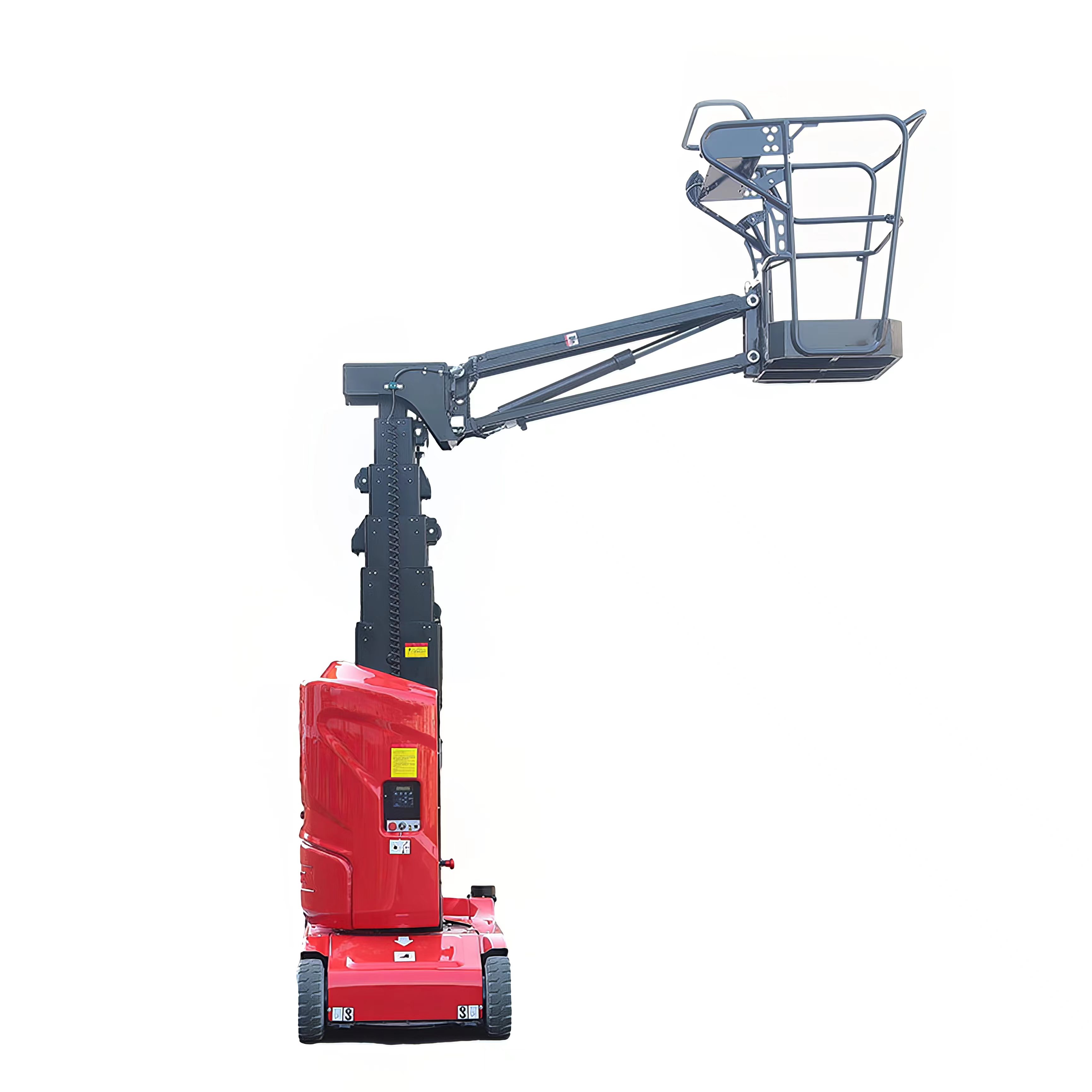

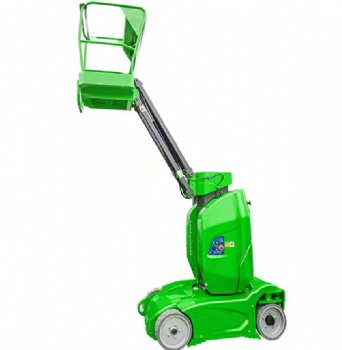

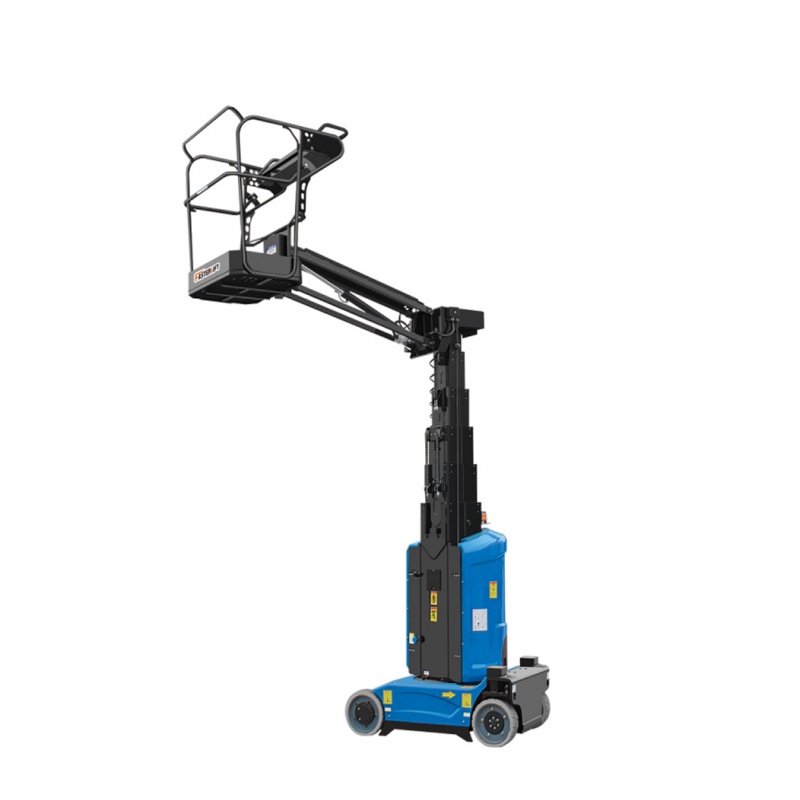

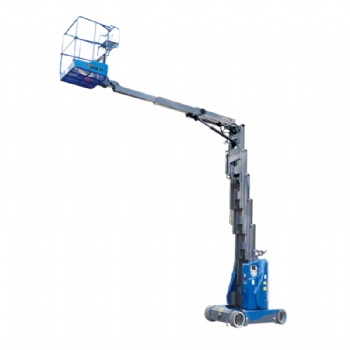

Vertical Mast Boom Lift

working height is 11.2m,self propelled,full battery power,very compact and convenient.Horizontal working range are big.It's very popular among our high end clients.
EMAIL INQUIRY

Model Type	FB11H
Max. Working Height	11.2m
Max. Platform Height	9.2m
Max. Horizontal Reach	3m
Up and Over Height	7.89m
guardrail height	1.1m
Overall Length	2.72m
Overall Width	1.0m
Overall Height（stowed)	1.99m
Platform Dimension	0.62*0.87m
Ground Clearance(Stowed)	60mm
Ground Clearance(Raised)	19mm
Wheelbase	1.22m
Loading capacity	200kg
Occupants	2
Turning Radius(Inside/Outside)	0.23/1.65m
Turret Rotation	345°
Jib Movement	70°/-60°
Travel Speed(Stowed)	4.5km/h
Travel Speed(Raised)	0.5km/h
Up/Down Speed	70/50s
Max. Working Slope	X-2.5°，Y-2.5°
Tyres	Ф381*127mm
Driving Motor	24V/1.5kW
Lifting Motor	24V/3kW
Battery	24V/240Ah
Charger	24V/30A
Weight	2950kg
