Vertical Forklift Mast Lift Vertical Forklift Mast Lift

Vertical Forklift Mast Lift

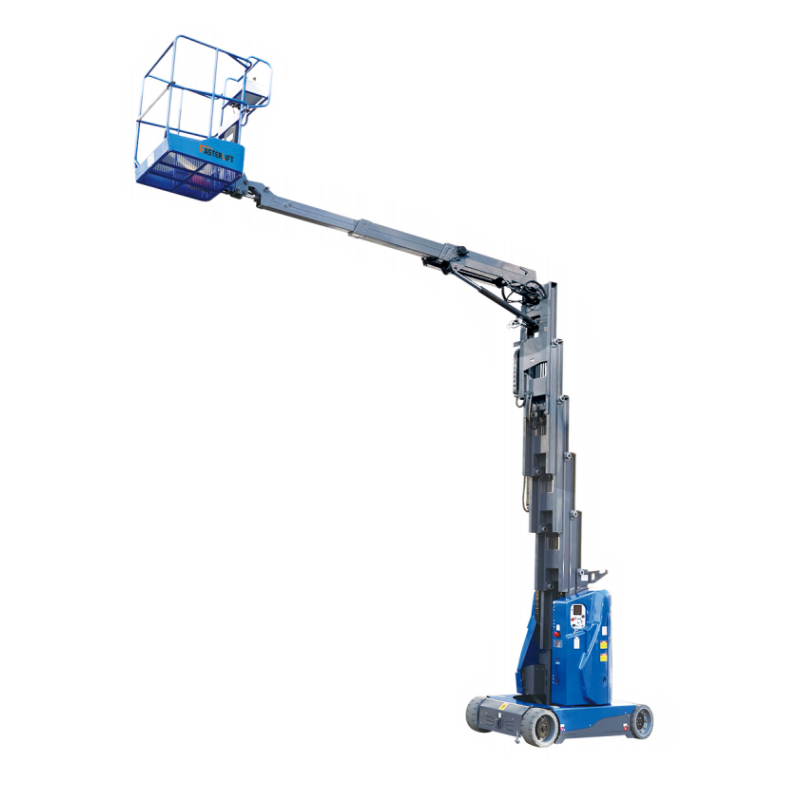

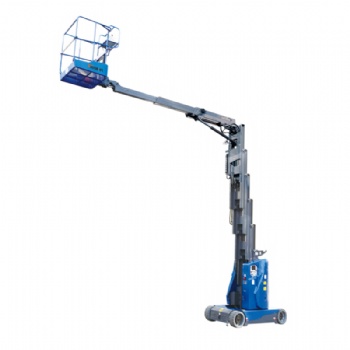

  • The Vertical Forklift Mast Lift is a compact and highly maneuverable aerial work platform designed for indoor maintenance, installation, and light construction tasks. Featuring a forklift-style vertical mast combined with a rotating turret and jib, the lift provides both vertical elevation and horizontal outreach for precise positioning at height.

    Powered by an electric drive system, the machine delivers quiet, zero-emission operation, making it ideal for warehouses, factories, shopping malls, airports, and other indoor environments. Its compact footprint allows easy access through narrow aisles and confined spaces, while the smooth lifting system ensures stable and safe operation.

    With intuitive controls, excellent maneuverability, and reliable performance, the Vertical Forklift Mast Lift is available in multiple models with working heights up to 12.65 m, offering an efficient solution for indoor aerial access and maintenance needs.
  • EMAIL   INQUIRY

ItemFB10EFB13E
Working Height (m)1012.65
Max Platform Height (m)810.65
Max Horizontal Reach (m)3.516.05
Overall Length (m)2.783.72
Overall Width (m)11.2
Overall Height (Stowed, m)1.981.98
Platform Dimension (m)0.8×0.930.8×0.93
Ground Clearance (Stowed, mm)8580
Ground Clearance (Raised, mm)8580
Wheelbase (m)1.21.55
Loading Capacity (kg)200200
Occupants22
Turning Radius (Inside/Outside, m)0.23 / 1.650.23 / 1.65
Turret Rotation (°)356352
Jib Movement (°)60 / -6060 / -60
Travel Speed (Stowed, km/h)4.53.6
Travel Speed (Raised, km/h)0.80.7
Gradeability (%)2530
Max Working SlopeX-2.0°, Y-2.0°X-2.0°, Y-2.0°
TyresΦ406×125 mmΦ406×178 mm
Driving Motor24V / 0.9 kW48V / 3.3 kW
Lifting Motor24V / 3 kW48V / 3 kW
Battery24V / 220Ah48V / 260Ah
Charger24V / 30A48V / 35A
Weight (kg)28504980
