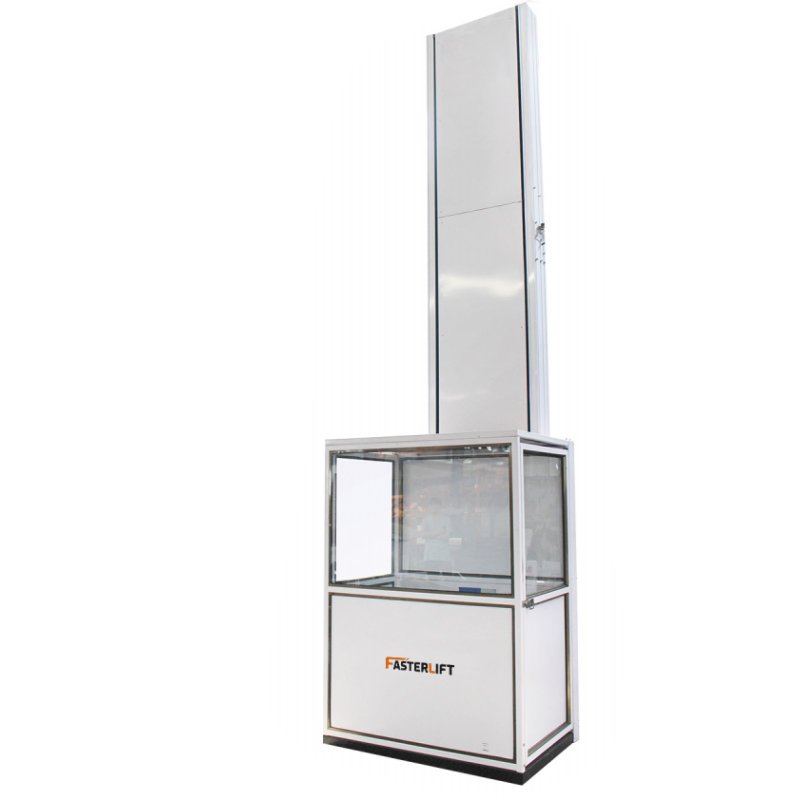

  • Home Lift

Home Lift

  • The Residential Home Lift is a modern vertical transportation solution designed for private houses, villas, and duplex residences. With a compact structure and elegant appearance, it integrates seamlessly into residential interiors while providing smooth, safe, and reliable lifting performance.

    Featuring a robust drive system and precision guide rails, the home lift delivers stable and quiet operation. The enclosed cabin design, available with glass or metal panels, enhances safety while offering excellent visibility and a premium aesthetic. Multiple safety features, including emergency stop, overload protection, and power failure lowering, ensure secure daily use.

    This home lift is ideal for improving mobility, convenience, and property value. It supports elderly users and enhances accessibility without requiring extensive construction work. With flexible customization options in cabin size, finish, and configuration, the Residential Home Lift offers a practical and stylish solution for modern living spaces.
  • EMAIL   INQUIRY


WL0.5WL1.0WL1.5WL2.0WL2.5WL3.0WL3.5WL4.0WL5.0WL6.0
Max Platform Height0.5m1m1.5m2m2.5m3m3.5m4.0m5.0m6.0m
Load Capacity350kg300/400kg300/400kg300/400kg300/400kg300/400kg300/400kg300/400kg300/400kg300/400kg
N.W/G.W(kg)300/400350/450450/550550/700700/850780/900850/900880/9501000/11001100/1200
Machine Size(m)1.5*1.43*1.3m2*1.43*1.3m2.5*1.43*1.3m3*1.43*1.3m3.5*1.43*1.3m4*1.43*1.3m4.6*1.43*1.3m5.1*1.43*1.3m6.1*1.43*1.3m7.1*1.43*1.3m
Packing Size(m)2.1*1.55*0.75m2.2*1.55*0.75m2.4*1.55*0.8m2.6*1.55*0.8m2.9*1.55*0.8m3.2*1.55*0.8m3.5*1.55*0.8m3.7*1.55*0.8m4.2*1.55*0.8m4.7*1.55*0.8m
Platform size 1.43*1m skid proof checkered steel plate
Min Height 100mm,with a fixed ramp on ground,or you can install it in a pit to make the platform same level with ground
Speed 0.06-0.1m/s
Power Output 1.5KW
 2.2KW
Voltage As per your local Standard (single phase or three phase)
Drive System Silent no frustration Hydraulic pump station and electric motor
Control Mode Automatic 1. control panel inside cabin 2. post control on each floor 3. remote control 2pcs
Drive Control Automatic Self-resetting system,PLC control
Overload Over current relay protection
Materials Aluminium rails and guard with spraying plastics
Working temp. Both indoors and outdoors -20°-70℃
20' GP Qty10set8set8set7set6set6set5set5set4set4set
40' GP Qty20set16set16set14set12set12set10set10set8set8set


WL7.0WL8.0WL9.0WL10WL11WL12WL13WL15
Max Platform Height7.0m8m9m10m11m12m13m15m
Load Capacity300/400kg300/400kg300/400kg300/400kg300/400kg300/400kg300/400kg300/400kg
Platform size 1.43*1m skid proof checkered steel plate
Min height 100mm,with a fixed ramp on ground,or you can install it in a pit to make the platform same level with ground
Speed 0.06-0.1m/s
Power Output 2.2KW
Voltage As per your local Standard (single phase or three phase)
Drive System Silent no frustration Hydraulic pump station and electric motor
Control Mode Automatic 1. control panel inside cabin 2. post control on each floor 3. remote control 2pcs
Drive Control Automatic Self-resetting system,PLC control
Overload Over current relay protection
Materials Aluminium rails and guard with spraying plastics
Working Condition Both indoors and outdoors -20°-70℃
Packing Size5.2*1.55*0.8m5.7*1.55*0.8m5.8*1.55*0.9m5.8*1.55*1m5.8*1.55*1.5m5.8*1.55*1.5m5.8*1.55*1.5m5.8*1.55*1.5m
