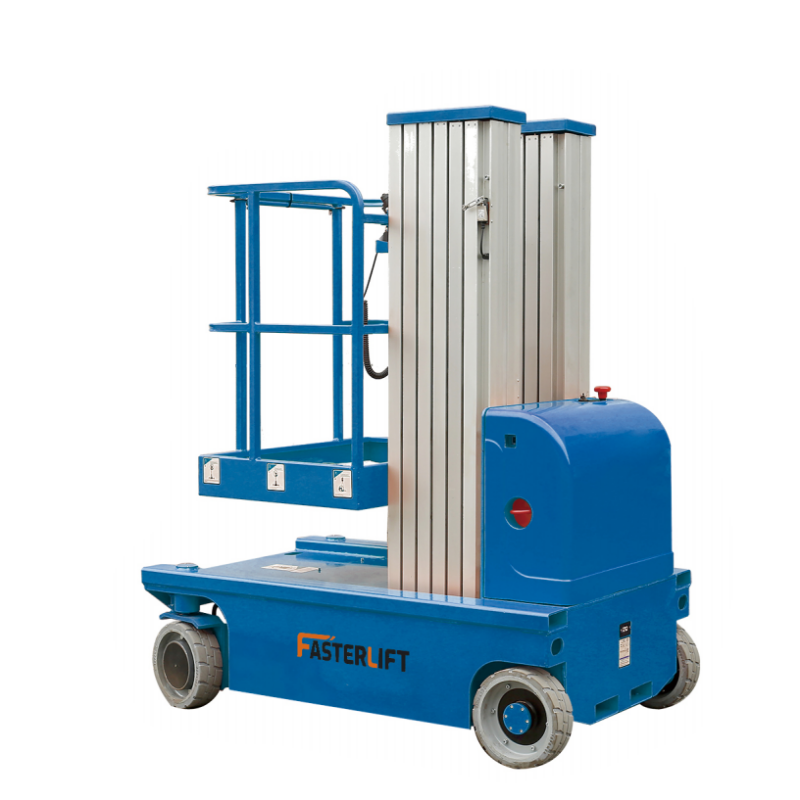

Self-Propelled Aluminum Mast Lift

  • The Self-Propelled Aluminum Mast Lift is a compact and efficient vertical access solution designed for safe and productive work at height in indoor and restricted environments. Built with high-strength aluminum alloy masts, it offers excellent rigidity while maintaining a lightweight structure for easy maneuverability.

    Equipped with an electric self-propelled drive system, this mast lift allows operators to move and position the platform effortlessly at ground level, reducing downtime and improving overall efficiency. The narrow chassis and tight turning radius make it particularly suitable for warehouses, factories, shopping centers, airports, and maintenance areas with limited space.

    The lift features a stable vertical mast system that ensures smooth and precise lifting, while the spacious platform with guardrails provides a safe and comfortable working area. Integrated safety systems, including emergency stop, overload protection, and automatic braking, enhance operator confidence and jobsite safety.

    With quiet, emission-free operation and minimal maintenance requirements, the Self-Propelled Aluminum Mast Lift is an ideal choice for installation, inspection, repair, and facility maintenance tasks that demand flexibility, reliability, and ease of use.
  • EMAIL   INQUIRY

Self PropelledAWP07EAWP9.5EAWP11E
Working Height7000mm9500mm11000mm
Max Lifting Height5000mm7500mm9000mm
Max Machine Height9000mm9000mm10500mm
Min Platform Height680mm680mm680mm
Ground Clearance20mm20mm20mm
Lift Rated Capacity220kg220kg150kg
Platform Size 1000x700x1100mm
Max Drive Speed (Platform Towed) 3-4km/h
Max Drive Speed (Platform Elevated) 0.6-1mm
Minimum Turn Radius 1800mm
Max Climbing Capacity20%
Directional Wheel Size Φ305x100in
Driving Wheel Size Φ305x100mm
Driver Motor 2x2.4/0.5v/kw
Lifting Motor 24/2.2v/kw
Battery 2x12/150v/Ah
Charger 24/15v/A
Pothole Protection System Mechanical controler
Overall Length 1700mm
Overall Width 1000mm
Overall Height1900mm2000mm2100mm
Overall Net Weight1000kg1100kg1250kg
