  • Spring Lift Table

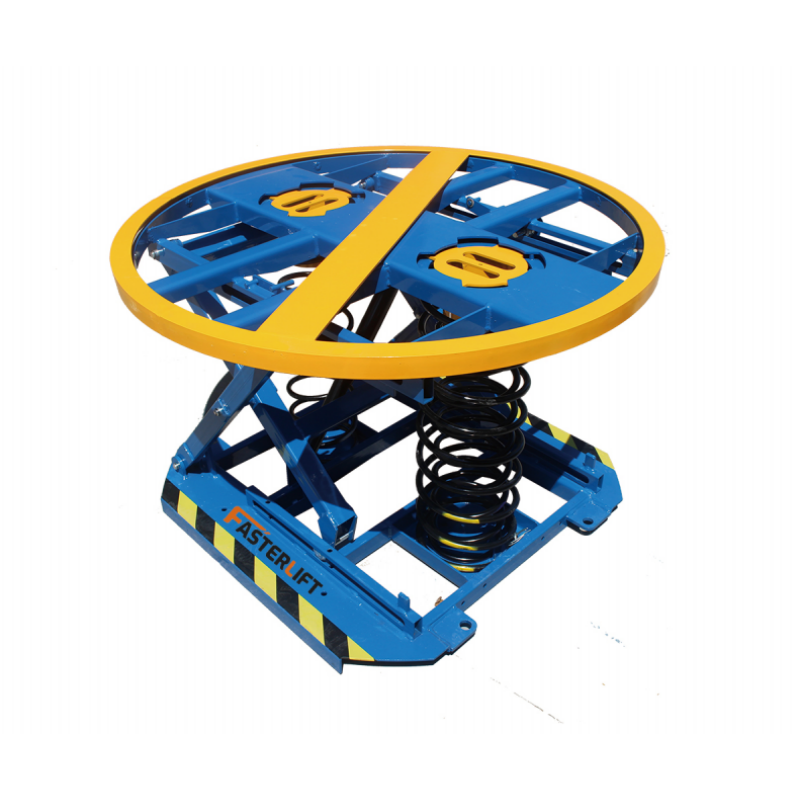

Spring Lift Table

  • The Spring Lift Table is an ergonomic material handling solution designed to maintain an optimal working height automatically as loads are added or removed. Powered by a heavy-duty mechanical spring system, it operates without electricity or hydraulics, offering a simple, reliable, and energy-efficient lifting solution.

    This lift table is ideal for repetitive loading and unloading tasks, helping reduce operator fatigue and improve workplace safety. The scissor structure provides stable vertical movement, while the spring mechanism ensures smooth and responsive height adjustment. Its robust steel frame ensures long service life in industrial environments.

    Commonly used in assembly lines, packaging stations, warehouses, and production facilities, the Spring Lift Table improves productivity by minimizing bending and lifting strain. With low maintenance requirements and easy operation, it is a cost-effective choice for ergonomic workplace
  • EMAIL   INQUIRY

Spring Lift Table ModelHW2000S
Load Capacity (kg)182-2000kg
Max. Pallet Size (mm)1.27013E+11
Base Size (mm)920*933
Lowered Platform Height (mm)242
Max Platform Height (mm)705
Rotary Platform Diameter (mm)1108
Net Weight (kg)173
ConstructionSteel
OperationSpring Lift
