Tracked Spider Crane

Telescopic outriggers Spider Crane

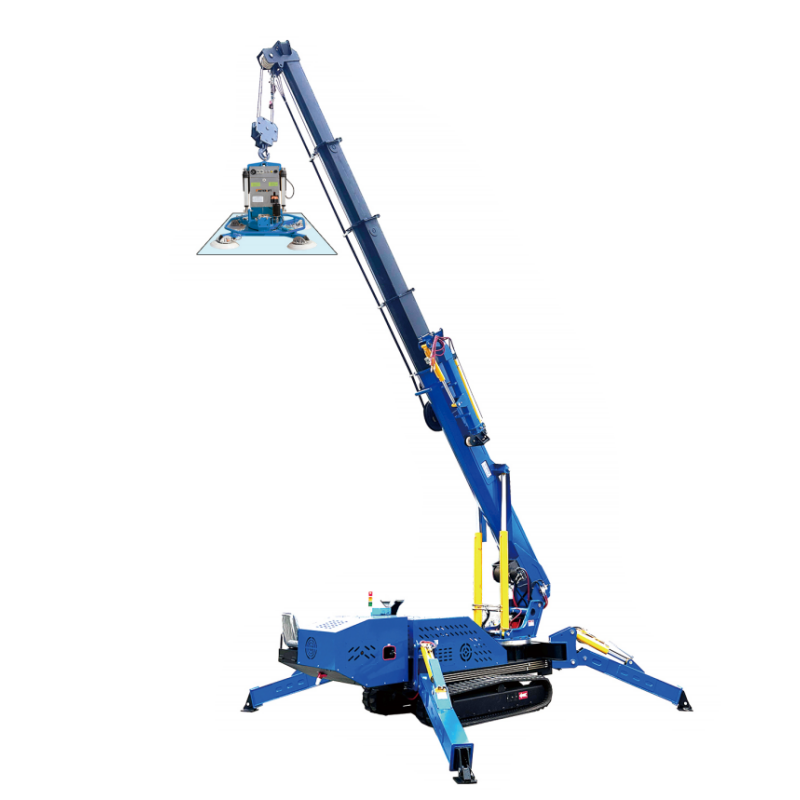

The Spider Crane is a compact and versatile lifting solution designed for operations in confined and restricted access areas. Featuring a crawler chassis and extendable outriggers, the crane delivers excellent stability and lifting performance while maintaining a small footprint.

Its narrow body allows easy access through doorways, elevators, and tight passages, making it ideal for indoor applications where conventional cranes cannot operate. The crawler tracks provide smooth movement and strong traction on uneven or sensitive surfaces.

Available in electric or diesel power options, spider cranes offer low noise, zero-emission indoor operation or powerful outdoor performance, depending on job site requirements. With precise control systems and high lifting capacity relative to size, the spider crane is widely used for glass installation, steel structure erection, equipment installation, and maintenance work.
EMAIL INQUIRY

Model Type		CL5.0	CL8.0	CL10	CL12	CL14
Capacity		5.0 ton	8.0 ton	10 ton	12 ton	14 ton
Maximum Lift Upward		17m*1.5t	18.5m*1.2ton	21m*0.6t	24.5m*0.9t	24.5m*2t
Maximum Lift Downward		70m	80m	100m	80m	80m
Max Operating Radius		15m*1t	16.5m*0.8t	20m*0.2t	23*0.2t	23*1.5t
Winch	Lift Speed	0-12m/min	0-12m/min	0-12m/min	0-12m/min	0-12m/min
Winch	Steel Rope	D10mm*70m	D10mm*80m	D11mm*100m	D12mm*80m	D12mm*80m
Boom	Telescopic	5 stage,Mn steel	5 stage,Mn steel	6 stage,Mn steel	5 stage,Mn steel	5 stage,Mn steel
Boom	Length/Time	4m-15m/40sec	4.5m-16m/40sec	5m-21m/22sec	5.5m-23m/22sec	5.5m-23m/22sec
Lift	Angle/Time	0-75°/13sec	0-75°/13sec	0-75°/13sec	0-75°/13sec	0-75°/13sec
Rotate	Angle/Speed	0-360°/60sec	0-360°/60sec	0-360°/60sec	0-360°/60sec	0-360°/60sec
Outrigger	Control Way	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
	Extension	5600*5500mm	6400*6500mm	7400*7000mm	7400*7000mm	7400*7000mm
Walking	Control Way	Hydraulic Driving	Hydraulic Driving	Hydraulic Driving	Hydraulic Driving	Hydraulic Driving
	Two Speed	0~2.5km/h	0~2.5km/h	0~2.5km/h	0~2.5km/h	0~2.5km/h
	Climb Ability	20°(36%)	20°(36%)	20°(36%)	20°(36%)	20°(36%)
Power	Dual Power	Electric+Diesel	Electric+Diesel	Electric+Diesel	Electric+Diesel	Electric+Diesel
Motor	Electric 3ph	380v/customized	380v/customized	380v/customized	380v/customized	380v/customized
Engine	Fuel	Yunnei Diesel	Diesel	Yunnei Diesel	Changchai Diesel	Yuchai Diesel
	Displacement	YN25GB/2.5L	YN27GBZ/2.5L	YN27GBZ/2.5L	65KW	85KW
	Start Way	Electric	Electric	Electric	Electric	Electric
	Work Temp.	-5°C~40°C	-5°C~40°C	-5°C~40°C	-5°C~40°C	-5°C~40°C
	Fuel/Volume	Diesel/70L	Diesel/130L	Diesel/130L	Diesel/130L	Diesel/130L
	Battery	12v 80AH	12v 80AH	12v 80AH	12v 80AH	12v 80AH
	Consumption	274g/kW-h	274g/kW-h	274g/kW-h	274g/kW-h	274g/kW-h
	Noise Grade	≤81.5dBA (1m)	≤81.5dBA (1m)	≤81.5dBA (1m)	≤81.5dBA (1m)	≤81.5dBA (1m)
	Emission	II	II	II	III	III
System	Control Way	Button+Joystick	Button+Joystick	Button+Joystick	Button+Joystick	Button+Joystick
System	Optional	Remote Control	Remote Control	Remote Control	Remote Control	Remote Control
Surface	Treatment	Baking Varnish	Baking Varnish	Baking Varnish	Baking Varnish	Baking Varnish
Size	Machine(M)	4.651.42.16	5.011.62.2	5.551.852.3	6.051.852.3	6.0522.3m
Size	Loading By	LCL	1*20’GP FCL	1*20’GP FCL	1*40’GP FCL	1*40’GP FCL
Weight	Net Weight	6.3ton	7.8ton	8ton	11.7ton	15.2ton
Shipping	By Sea	LCL	1*20’GP FCL	1*20’GP FCL	1*40’GP FCL	1*40’GP FCL
