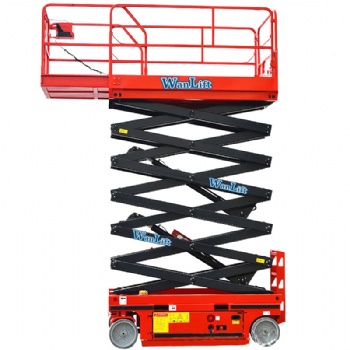

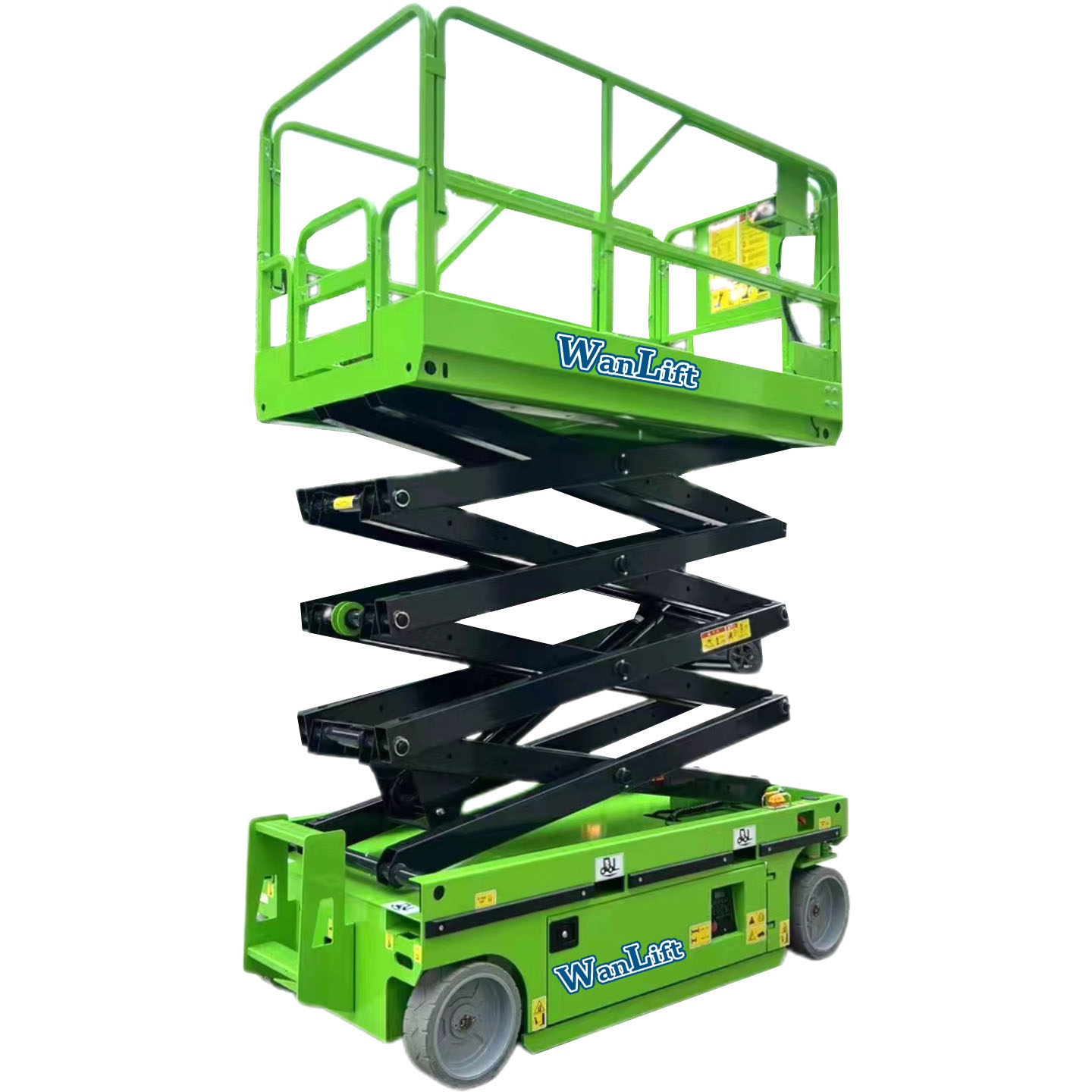

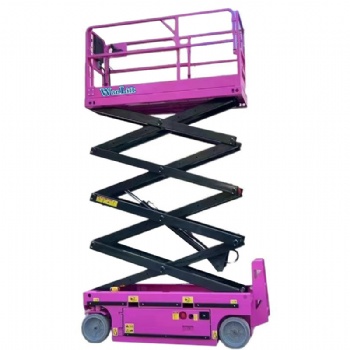

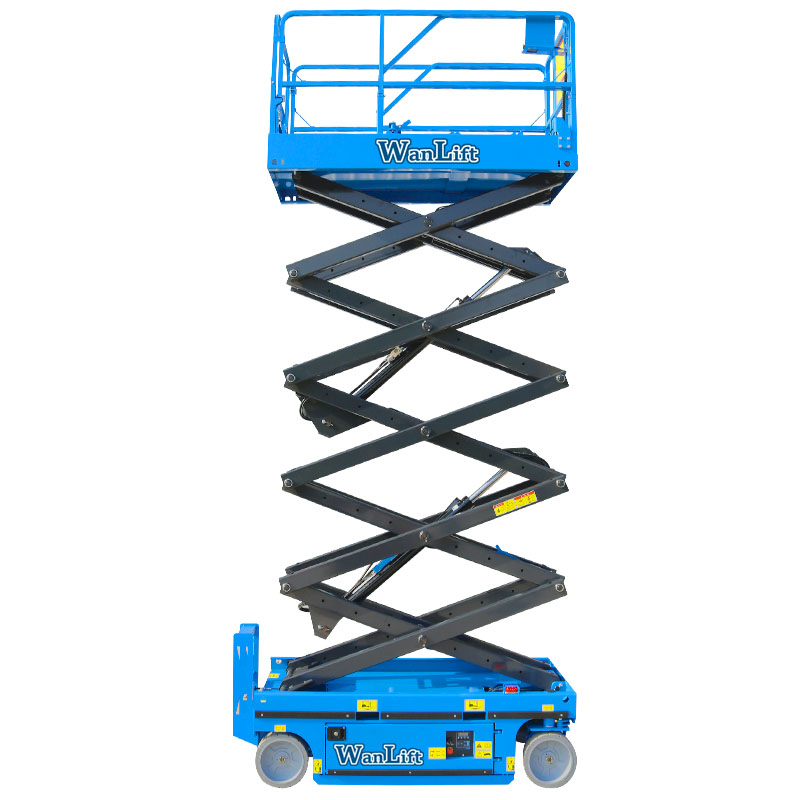

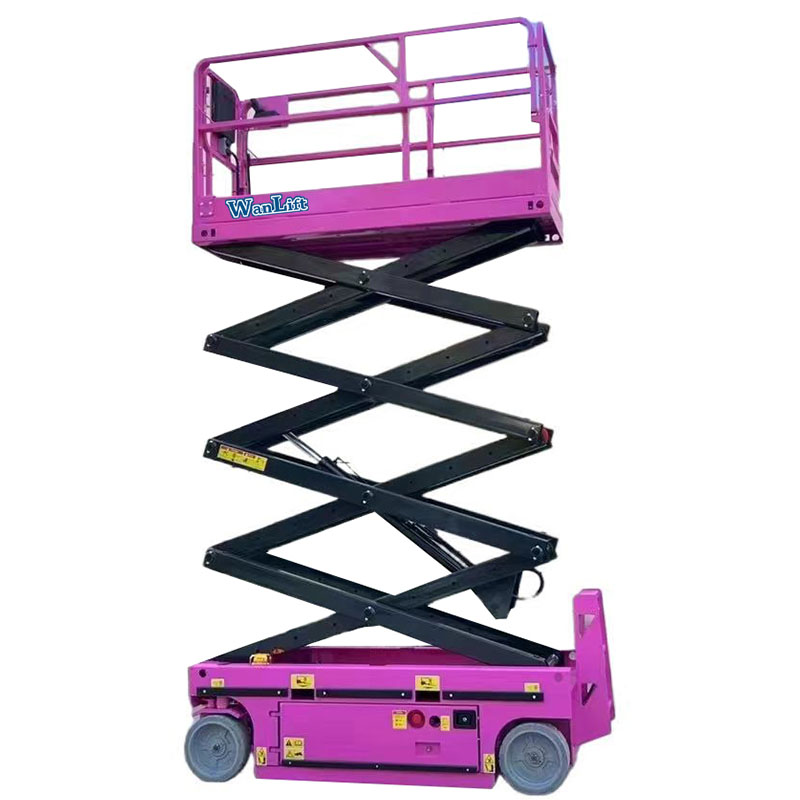

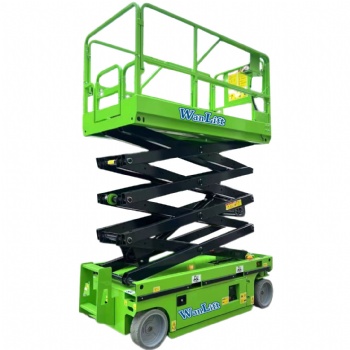

High end hydraulic driving self propelled scissor lift

Working Height(m)

5.9

7.8

8

8

10

12

13.8

15.8

Platform Height(m)

3.9

5.8

6

6

8

10

11.8

13.8

Platform Size(mm)

1170*680

1670*740

2270*1110

2270*850

2270*1110

2270*1110

2270*1110

2640*1130

Capacity(kg)

300

230

320

320

450

450

320

230

Extend Platform(mm)

500

900

900

900

900

900

900

900

Capacity(kg)

113

113

113

113

113

113

113

100

Guardrail Height(mm)

110

110

110

110

110

110

110

110

Ground clearance(mm)

0.1/0.02

0.1/0.02

0.1/0.02

0.1/0.02

0.1/0.02

0.1/0.02

0.1/0.02

0.1/0.02

Wheelbase(mm)

1.01

1.36

1.86

1.89

1.89

1.89

1.89

2.24

Turning radius (mm)

1.4

2.0

2.2

2.2

2.2

2.2

2.2

2.8

Motor(v/kw)

24/0.8

24/3.3

24/4.5

24/4.5

24/4.5

24/4.5

24/4.5

24/4.5

Lifting Speed(m/min)

3-5

3-5

3-5

3-5

3-5

3-5

3-5

3-5

Driving Speed(km/h)

4/0.8

4/0.8

4/0.8

4/0.8

4/0.8

4/0.8

4/0.8

4/0.8

Storage Battery(V/Ah)

2*12/80

2*12/80

4*6/200

4*6/200

4*6/200

4*6/200

4*6/200

4*6/240

Charger(V/A)

24/15

24/15

24//30

24//30

24//30

24//30

24//30

24//30

Grade ability(%)

25

25

25

25

25

25

25

25

Max Work Angle(°)

1.5/3

1.5/3

1.5/3

1.5/3

1.5/3

1.5/3

1.5/3

1.5/3

Driving Wheel(mm)

Φ230*80

Φ381*110

Φ381*127

Φ381*127

Φ381*127

Φ381*127

Φ381*127

Φ381*127

Machine Length(mm)

1340

1810

2490

2450

2490

2490

2490

2800

Machine Width(mm)

760

780

1170

870

1170

1170

1170

1270

Machine Height(mm)

1980

1700

1685

1950

1810

1935

2060

2130

Machine Weight(kg)

680

1300

2200

2050

2300

2600

2850

3600
